Bundling

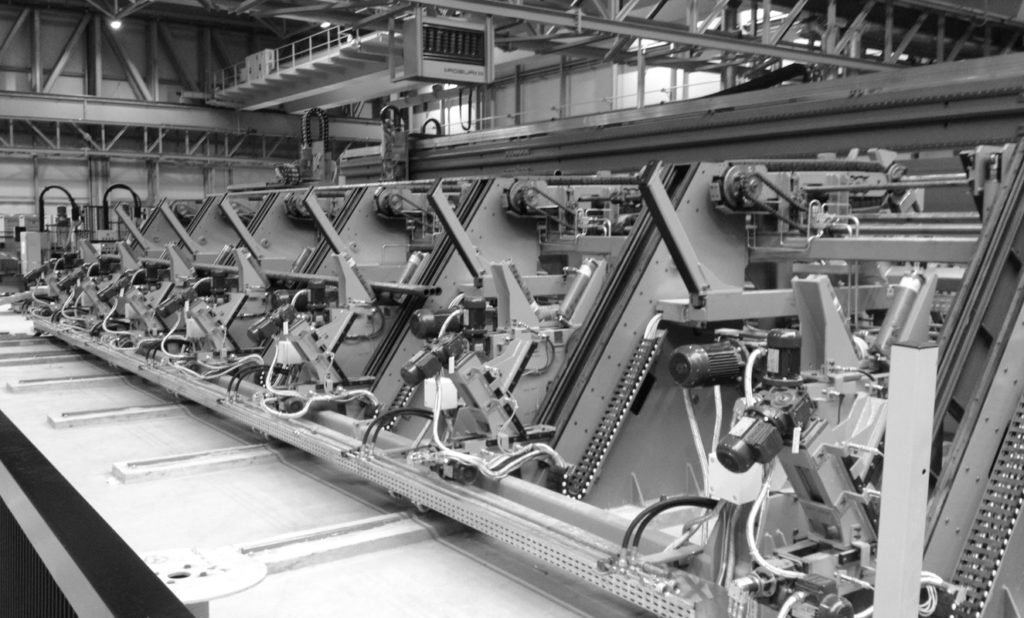

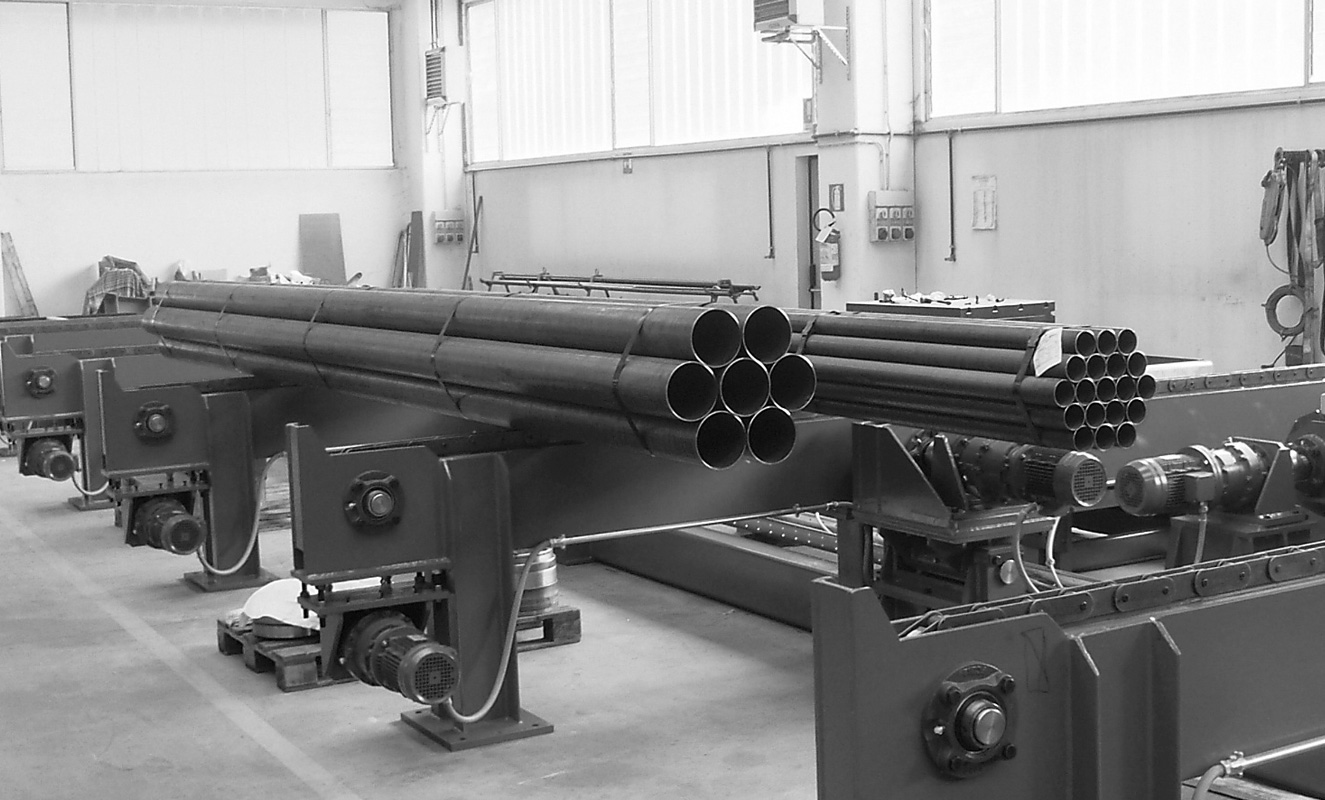

Automatic bundling station with magnets

Pipes specification example

Length Min. mm 6.000
Length Max. mm 15.000
Reference Length. mm 12.000
Diam. Min. 2”3/8 – 60 (mm)
Diam. Max. 7”-180 (mm)
Reference Diam. 100 (mm)
Wall Thickness Min. mm 2,5
Wall Thickness Max. mm 15
Max Pipe Weight. Kg 800
Reference Wall Thicknes. mm 5
Cycle Time Min. 50”
Cycle Time Max. 300”
Max Bundle Weight Ton 10

Example of data’s pipes

Lenght Min. mm 5.000
Lenght Max. mm 14.630
Reference Length. mm 12.000
Diam. Min. 2”3/8 – 60 (mm)
Diam. Max. 10 3/4” – 273.1 (mm)
Wall Thickness Min. mm 3,9
Wall Thickness Max. mm 25
Max Pipe Weight. Kg 2.200
Max Bundle Weight. Ton 10

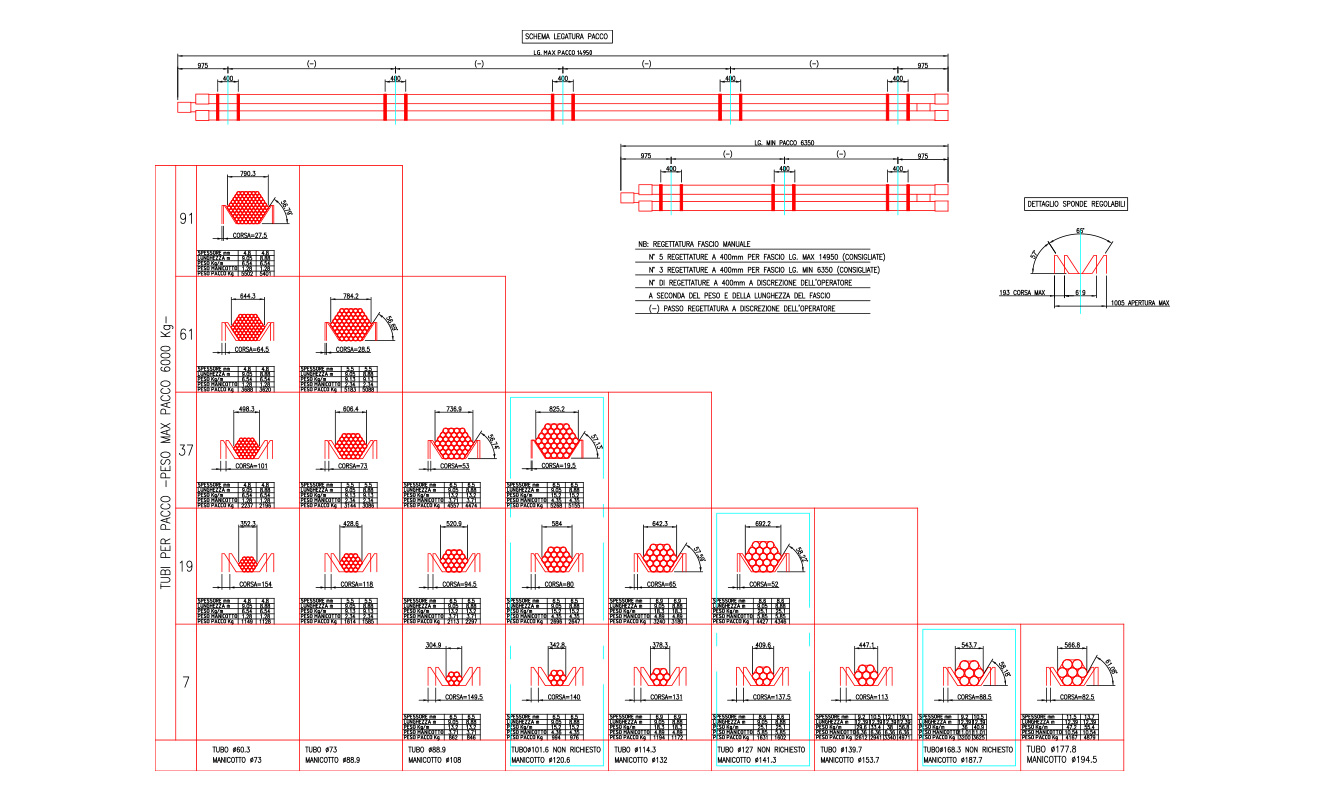

Schema legatura pacco
